Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert
Showroom Location : Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge
Condition : New
Product Type : Production Line
Processing Type : PLC
Place of Origin : Fujian, China
Brand Name : JORI
Voltage : 380V 50Hz
Power : 18kw
Dimension(L*W*H) : 10000*3000*2000
Weight : 16.5 kg
Warranty : 1 Year
Production Capacity : 200 pcs/min
Machinery Test Report : Provided
Video outgoing-inspection : Provided
Marketing Type : New Product 2021
Warranty of core components : 1.5 years
Core Components : PLC, Motor, Pump
Product name : wrapping paper printing toilet paper roll packing machine
After-sales Service Provided : Engineers available to service machinery overseas
Model : 1575
Jumbo Roll Max Width : 1750mm
Jumbo Roll Ddiameter : 1100mm
Jumbo Roll Inner Ddiameter : 76.2mm/3 inches(Other sizes can be ordered)
Finished Product Diameter : 80-140mm
Perforation Distance : 4 anvil Blades
Finished Product Core Diameter : 38-48mm
Production Speed : 0~180m/min
Packaging Details :
Wooden Cases, Seaworthy Package.
full-automatic two ply wrapping paper machine production line for Ghana
Port : xiamen port,China
Supply Ability : 40 Unit/Units per Month Small Toilet Paper Making Machine Toilet Roll Packing Machine To
Price : $45,000.00/Units 1-1 Units
full-automatic two ply wrapping paper machine production line for Ghana
Part 1: Fully Automatic Toilet Paper Rewinding Machine
Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients’ requirements.
Part 2: Double Channel Log Saw Machine
Double Channel Log Saw Machine is used for cutting the toilet paper roller and kitchen towel paper roller, it’s with high automation and efficient. Adopts advanced servo driving system, frequency conversion speed regulating, PLC control and touching screen operation.
1. Automatic blade grinding system, self-lubrication at regular intervals.
2. Sharpen wheel can grinding according to the wear degree.
3. Two Logs are feeding automatically, cutting then pushing.
4. Shortcuts can be kicked off from the quality products.
5. Equip with two sets of clamping channels, easy to change.
Part 3: Semi Automatic Multi Rolls Packing & Sealing Machine
This machine is specially used for packaging tablets roll, with a conveyor belt.
The machine to adapt to the toilet paper roll diameter is less than or equal to 100-118MM, 8 or 10 can be packaged or 12 rolls of toilet paper.
The machine is simple, flexible, sealed bag is the one machine.
Voltage: | 220V 50HZ |
Main Power: | 0.74KW |
Sealing Transformer Power: | 0.45KW |
Total Power: | 1.19KW |
Air Pressure: | 0.4---0.5MPA |

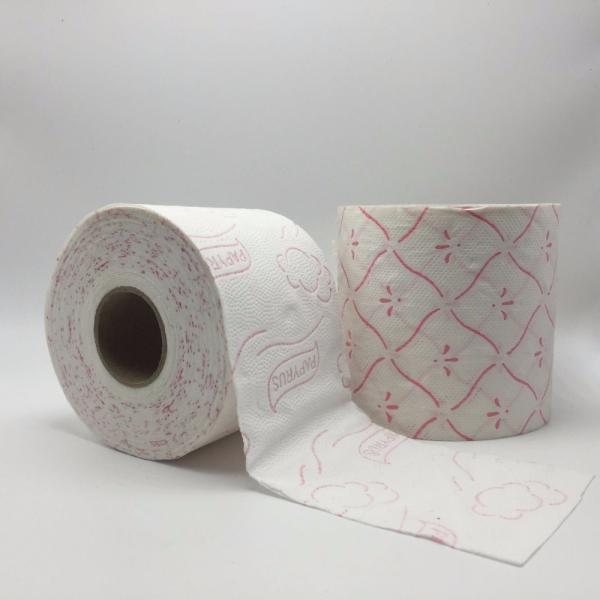

Finished Products(Can Make Four Types of Paper)
1.Fastly and professional reply to you about your questions for our toilet tissue paper production machine.
2.Expert sales person will provide you professional suggestion to you based on your correct needs for the configurations of the machines
3.Detailed and clearly explain to you when you come to our factory for visiting before contract
One-stop and customize service for you, all tissue paper processing related machines are available from us
24 Hours online service, 7 Days one week support for you if any technical questions or problems about toilet tissue paper making machine.
1.Engineers overseas installation and trainning, all our engineers are rich experience for overseas working
2.Guarantee you steady supply for the spare parts with the lower prices
|
