High Quality Hot Melt Coating Glue Machine Automatic Made in China

Product Categories

Dalian Jori Co., Ltd.

Contact Now

High Quality Hot Melt Coating Glue Machine Automatic Made in China

Name: High Quality Hot Melt Coating Glue Machine Automatic Made in China
Brand: JORI
Price: 1 USD

Wholesale High Quality Hot Melt Coating Glue Machine Automatic Made in China from china suppliers

Type : Gluing Machine

Applicable Industries : Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Advertising Company

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : Engine, Pressure vessel

Condition : New

Application : APPAREL, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles

Packaging Type : Cartons

Packaging Material : Wood

Automatic Grade : Semi-automatic

Driven Type : Electric

Voltage : 220V

Place of Origin : Fujian, China

Brand Name : JORI

Dimension(L*W*H) : 25mm*25mm

Weight : 2150 KG

Warranty : 1 Year

Key Selling Points : Easy to Operate

After-sales Service Provided : Free spare parts

Product name : Easy use 5L hot melt coating machine manufacturers

Usage : Corrugated Paperboard Folding Gluing

Speed : 0~220m/min Adjustable

Glue type : Normal Cold Glue

coating width : 400mm

Certification : CE

How to use : User Manual

Tank Capacity : 5 Kg

Function : High Efficiency

Packaging Details : Wooden Cases, Seaworthy Package.
Table Type Hot Melt Glue Coating Gluing Machine

Port : Xiamen Port, China

Supply Ability : 1000 Unit/Units per Month Table Type Hot Melt Glue Coating Gluing Machine

Price : $1,000.00/Units 1-4 Units

Contact Now

Product Description

High Quality Hot Melt Coating Glue Machine Automatic Made in China

JORI Group CO.,Limited supply all kinds of the Hot melt compatible parts for hot melt glue machines. Consumable parts like Nozzles, Hoses, Single & Multi module guns, Modules, Cordsets, heaters & Solenoid valves etc. We can provide complete gluing solutions for Food, Pharma,Beverages,Cosmetics, Non Woven,Non Food consumer Products,Seeds,Cable,Book binding & many more sectors.We can give solutions for Cart on, Labeling,Leaflet attachment,Tray formation,Straw application etc applications

Feature of the hot melt adhesive applicator:
1) Safety devices to avoid hands drawn into rollers, to prevent work piece entering melting tank.
2) Customized roller width ranges from 80-1000mm.

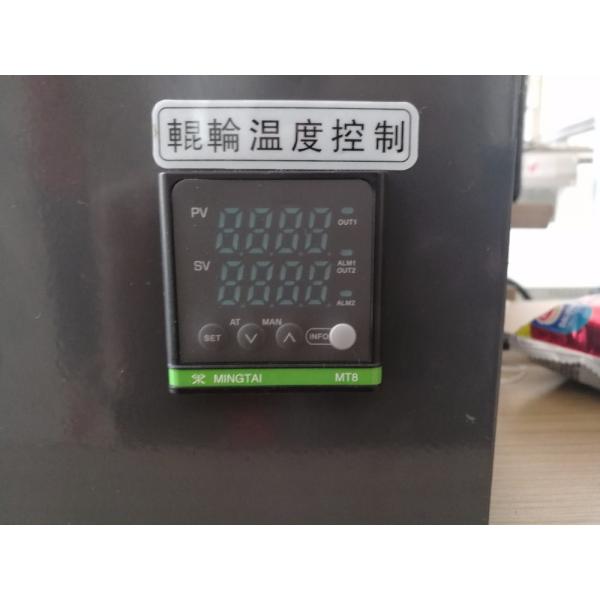

3) Roller rate can be adjusted as needed Tank temperature and roller temperature are separately controlled.
4) Stepless variable speed motor brings convenience in coating work pieces of variable sizes.

Specification:

ITEM	Quantity	Unit
Tank Capacity	7	KG
Max .melting rate	8	KG/HOUR
Max. Operation temp.	250	℃
Total Power	2500	Watt
Coating width	400	MM
Max. Viscosity	10000	Cps
Weight	60	KG
Power Requirement	220V, 50HZ, Single Phase

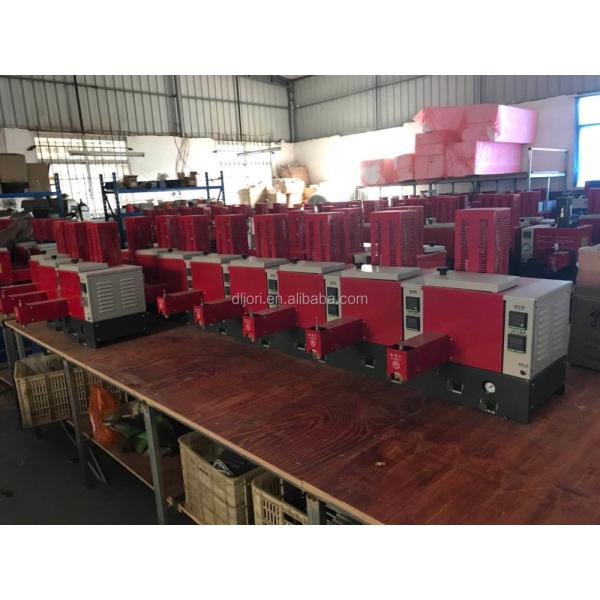

Machine Pictures:

High Quality Hot Melt Coating Glue Machine Automatic Made in China

Application of the hot melt adhesive equipment:

Big area coating in footwear, leather wares, paper box, decorations, construction material, sports instruments and etc., Instead of self-adhesive tape.

Gluing method of the hot melt adhesive machine:

Coating in spots, strips, web, flat or edge coating

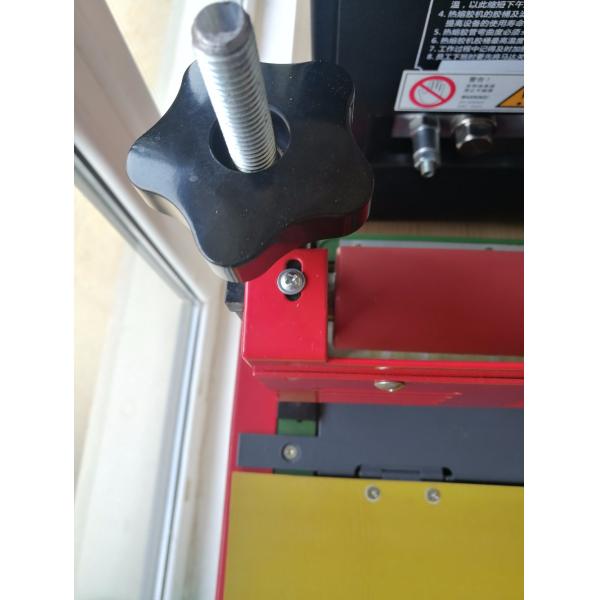

About adjust the height:

According to rotate the button to adjust the

distance between the steel roller and rubber roller.

This top is the rubber roller

The below is the steel roller

About the glue

Our glue tank capacity is 7kg
The customer can choose the different kinds of glue according to their requirement

Our Mission.

To provide a More Cost Efficient Solution for our customers.Suitable is the Best Way.Best for customers, for local market and even for our future. We treat it as our responsibility in every business.

Our Goal.

To get trust from every customers
who contacted with us. To show our sincerely in communication and our professional skills in business, to provide the most suitable machines for them to satisfy with their special need.

Our Culture.

To be professional and progress together. We treat every staffs as a family member.We learned, shared
and worked together to reach our goals. A little change everyday makes a big difference someday.

Our Service

Save energy 10L industrial hot melt glue coating equipment company

1.Fastly and professional reply to you about your questions for our napkin folding paper production machine.
2.Expert sales person will provide you professional suggestion to you based on your correct needs for the configurations of the machines
3.Detailed and clearly explain to you when you come to our factory for visiting before contract

Save energy 10L industrial hot melt glue coating equipment company

One-stop and customize service for you, all napkin paper processing related machines are available from us
24 Hours online service, 7 Days one week support for you if any technical questions or problems about toilet tissue paper making machine.

Save energy 10L industrial hot melt glue coating equipment company

1.Engineers overseas installation and trainning, all our engineers are rich experience for overseas working
2.Guarantee you steady supply for the spare parts with the lower prices
