Five Gallon PUR Glue Applicator PLC Controlled Pur Hot Melt Glue Spreader Machine

Name: Five Gallon PUR Glue Applicator PLC Controlled Pur Hot Melt Glue Spreader Machine
Brand: JORI
Price: 6 USD

Wholesale Five Gallon PUR Glue Applicator PLC Controlled Pur Hot Melt Glue Spreader Machine from china suppliers

Type : Gluing Machine

Applicable Industries : Building Material Shops, Machinery Repair Shops, Other

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Not Available

Marketing Type : New Product

Warranty of core components : 1 Year

Core Components : Motor, Gear

Condition : New

Application : Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles

Packaging Type : case

Packaging Material : Wood

Automatic Grade : Automatic

Driven Type : Manual

Voltage : 380V

Place of Origin : Fujian, China

Brand Name : JORI

Dimension(L*W*H) : 1030*560*1520mm

Weight : 195 KG

Warranty : 1 Year

Key Selling Points : Easy to Operate

Model/System : Variable frequency motor gear pump

Maximum amount of glue : 25kg/h

Barrel diameter : 280mm (5 gallons)

Outputs lines : 1 - 2 lines

Operating temperature range : 140-220 degrees

Ambient temperature range : 0-50℃

Temperature control accuracy : ±1 ℃

Temperature sensor : Pt100

Voltage standard : 380V

Air pressure : 0.5~0.7Mpa

After Warranty Service : Video technical support, Online support

Local Service Location : None

After-sales Service Provided : Video technical support, Online support

Certification : CE

Packaging Details : Wooden Cases, Seaworthy Package.
PUR glue machine

Port : xiamen port, China

Supply Ability : 30 Set/Sets per Month

Price : $6,000.00/Sets 1-9 Sets

Contact Now

Products Description

5 Gallons PUR Hot Melt Glue Machine

JORI Group CO.,Limited supplies all kinds of compatible parts for hot melt glue machines, including consumable parts like nozzles, hoses, single & multi module guns, modules, cordsets, heaters, solenoid valves etc..
We can provide complete gluing solutions for industries like food, pharma, beverages, cosmetics, Non woven, non food consumer products, seeds, cable, book binding & many more sectors. We can also give solutions for carton, labeling, leaflet attachment, tray, straw, etc.

Five Gallon PUR Glue Applicator PLC Controlled Pur Hot Melt Glue Spreader Machine

Features:

1.The structure of the whole machine adopts ergonomic design scheme and independently designes two parts of mechanical and electrical control system. It has the characteristics of reasonable structure and convenient operation and maintenance. 2.The increased space inside the whole machine design makes the electronic control box have enough heat dissipation space, which greatly reduces the damage and power loss of electronic components. 3. The connection between gear pump and motor adopts universal joint connection, which is used to make the angle between the two ends of the transmission shaft equal, ensuring that the instantaneous angular velocity of the output shaft and the shaft input shaft are always equal, which ensures the stability and uniformity of the melter during high-speed operation. . 4. The pressure plate is made of aluminum alloy precision casting, processed by precision machining CNC technology, and the surface layer is formed by DuPont Teflon deep penetration sintering treatment. It has the advantages of high coating strength and easy to fall off, which greatly reduces the phenomenon of carbonization of hot melt adhesive. . 5. The main machine adopts high-precision return valve (return valve sensitivity ±1bar). It is equipped with a locking function to avoid damage to equipment or personnel caused by operational errors. The whole filter design uses heavy multi-layer filtration to prevent PUR glue. Overdue is suspected to cause blockage. 6. The host temperature control system adopts the full touch screen module temperature controller combination control, with PID self-tuning adjustment function, full Chinese operation interface, graphical intelligent dialogue window, easy to operate, and equipped with 2 AD ports, a new intelligent alarm control unit It also adds a guarantee for the safe operation of customers. 7. Sense temperature is PT100 platinum metal temperature sensor with detection accuracy of ±1 °C. 8. Gear pump adopts 6CC large flow metering pump to ensure the stability of fast conveying. 9. The whole machine adopts high temperature resistant fireproof wire to improve the safety of the equipment. 10. The host control unit is equipped with an automatic tracking system, high-precision signal acquisition, special anti-electromagnetic interference design, internal over-current and over-voltage protection to ensure stable and reliable operation of the system

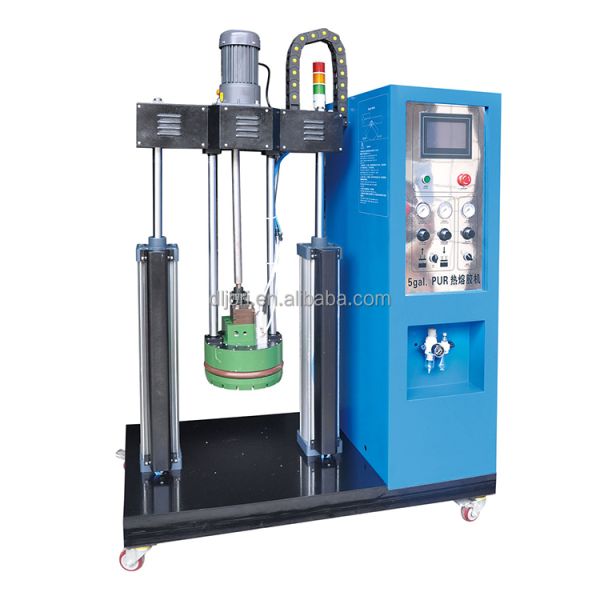

5 Gallon PUR HOT MELT GLUE MACHINE

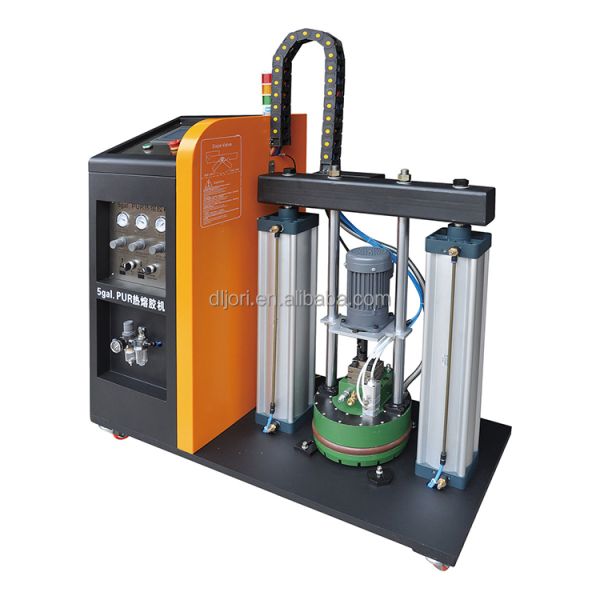

5 Gallon PUR PLC System HOT MELT Glue Machine

5 Gallon PUR PID TEMPERATURE HOT MELT GLUE MACHINE

5L Gallons PUR Hot Melt Glue Machine
Model/System:	Variable frequency motor gear pump
Barrel diameter:	280mm (5 gallons)
Maximum amount of glue:	25kg/h
Outputs lines	1 - 2 lines
Maximum working pressure:	10Mpa
Operating temperature range:	140-220 degrees
Ambient temperature range:	0-50℃
Temperature control accuracy:	±1 ℃
Temperature sensor:	Pt100
Voltage standard:	380V
Maximum heating power:	6500W
Air pressure:	0.5~0.7Mpa
Weight:	about 195 kg
Connection signal:	2 input, 2 output
Dimensions:	1030mm × 560mm × 1520mm

Application

Why Choose Us

Related Products

Package & Shipping

FAQ

1. How long is your Warranty?
A: All our products will have ONE year guarantee and we will continue to offer advice and spare parts after this period.
Within ONE year after receiving our machines, Under right operation and non-artificial reasons, If there are any damaged parts or accessories, We will replace them by air-mail or Express immediately FREE OF CHARGE.
After ONE year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, We are responsible to solve this problem soonest, and help customers to restore production as soon as possible.

2. How to Guarantee transaction security?
A: We could draft Trade Assurance order for buyers via Alibaba-Trade Assurance is a free service by Alibaba.com that’s designed to help create trust between buyers and suppliers. Trade Assurance helps buyers in the event of shipping and quality-related dispute.

3. Do your company accept Alibaba Trade Assurance?
A: yes, of course. （1） We will draft order according buyer requirements. （2）Negotiate terms with the supplier
and confirm order （3） Make payment to the bank account designated by Alibaba.com

4. What's the payment terms?
A: 30% initial payment when place your order, 70% balance payment before shipment.

5. About machine's Transportation & documents?
A: Pls advise us the nearest port of your city in order to check the latest sea freight for you at first. Fast and security
shipping company will be chose by our Delivery Department for customers (if we signed contract under CIF term). Even All risks Insurance will be covered during the whole transportation.
